Meanwell Drivers ELG-100, ELG-200

marcas zolu lighting costa rica

The ELG series is a family of high-performance AC/DC LED drivers and power supplies available in 100W, 150W, and 240W models. Designed with dual-mode output—supporting both constant voltage and constant current—they operate from a wide input range and offer multiple output voltage options (24V to 54V). With high efficiency ratings of up to 93% and a fanless design, the ELG series ensures reliable operation in demanding environments, with case temperatures ranging from -40°C to +90°C under free air convection. Housed in a robust metal casing with IP67/IP65 ingress protection, these drivers are ideal for both indoor and outdoor applications. Additionally, the series includes versatile function options such as various dimming methodologies, offering optimal flexibility for LED lighting system design.

SKU: i21 Categories: , Tags: , Certifications: , , , ,

ELG-100 series

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing design with functional Ground
  • Built-in active PFC function
  • Class 2 power unit
  • No load / Standby power consumption <0.5W
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
  • Typical lifetime>50000 hours
  • 5 ears warrant

Description

ELG-100 series is a I OOW AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-100 operates from 100—360VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -400C +90 C case temperature under free air convection. The design of metal housing and IP67/lP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Applications

  • LED street lighting
  • LED architectural lighting
  • LED bay lighting
  • LED floodlighting
  • Type "HL" for use in Class l, Division 2 hazardous (Classified) location.

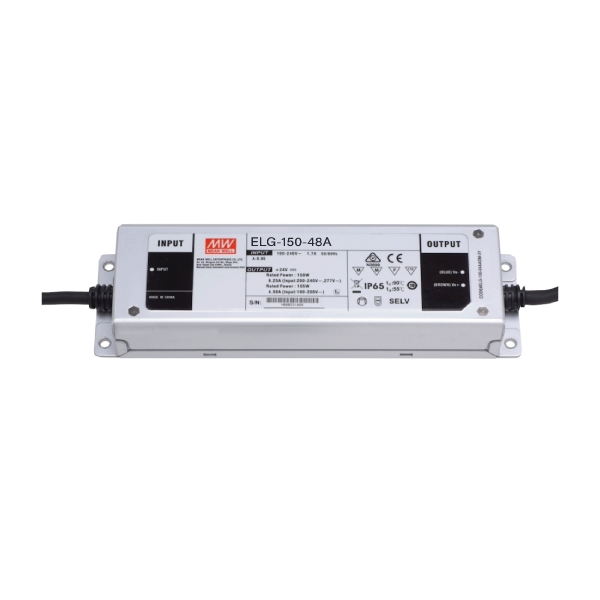

ELG-150 series

Features

  • 180095VAC input range
  • Built-in active PFC function
  • No load power consumption <0.5W
  • High efficiency up to 91%
  • Fanless design, cooling by free air convection
  • IP67 / IP65 design for indoor or outdoor installations
  • Output current adjustable through output cable or internal potentiometer for A-Type
  • Built-in 3 in I dimming function for B-Type or 1 OV PWM signal or resistance)
  • Protections: Short circuit / Over current / Over voltage/ Over temperature
  • Suitable for dry / damp / wet locations
  • Type "HL" for use in class I, Division 2 hazardous (Classified) location luminaires
  • 5 years warranty (Note.8)

Description

ELG-150 series is a 150W LED AC/DC power supply featuring the dual operating modes, constant current mode output and constant voltage mode output. Thanks to the high efficiency up to 91 %, with the fanless design, the entire series is able to operate for -400&+900C case temperature under free air convection. The design of metal housing and IP67/lP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for lighting system.

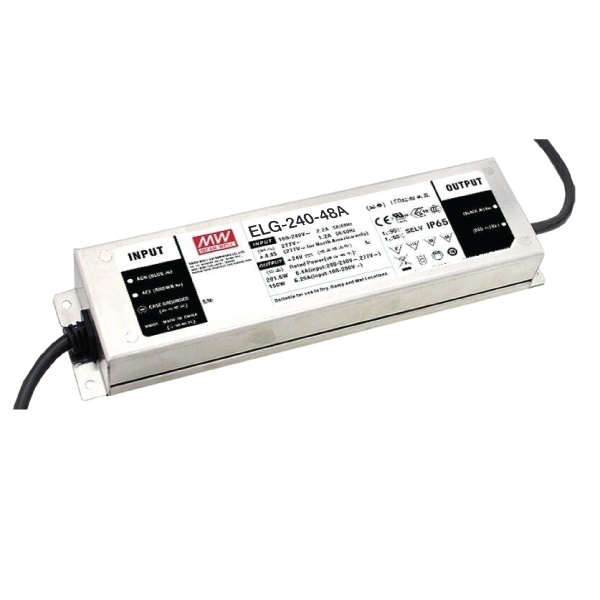

ELG-240 series

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing design with functional Ground
  • Built-in active PFC function
  • No load / Standby power consumption <0.5W
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in I dimming (dim-to-off); Smart timer dimming; DALI
  • Typical lifetime>50000 hours
  • 5 years warranty

Meanwell Driver ELG-100w

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [227.05 KB]

PDF Meanwell Drivers ELG 100w







Meanwell Driver ELG-150w

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Descargar Ficha Técnica [151.21 KB]

PDF de ficha tecnica Meanwell Drivers ELG 150w







Meanwell Driver ELG-240

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Descargar Ficha Técnica [231.97 KB]

PDF de ficha tecnica Meanwell Drivers ELG 240
